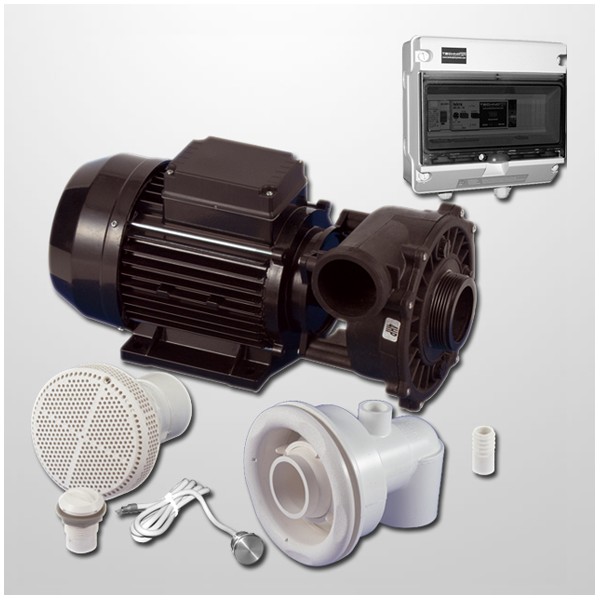

Components:

- 1 Swim Jet Ø145 mm. Flow: 22 m3/h at 8 m.c.a.

- 1 3HP Pool Pump 230v 50Hz.

- 1 Suction Ø130 mm. (45 m3/h).

- 1 Digital Push Button 316L Stainless Steel submersible Ip68 12v.

- 1 Air regulator.

- 1 Electrical panel for motor control and protection with adjustable timing (0-70 min.)

- 2 mts. Metalflex mesh tube Ø20x26 mm.

- 2 Ball valves Ø63 mm.

Features:

- Pump:

Flow: 45 m3/h. at 20 m.c.a.

Ø connections: 63 mm.

- Swim Jet.

Flow: 22 m3/h. at 8 m.c.a.

Ø Front: 145 mm.

Ø Water Connection: 63 mm

- Control Panel:

Switchboard with adjustable timing (0-70 min)

Protection with Differential 30 mA.

Thermal magnet protection 9-14 A

6.3-10A contactor

IP 55 protection

- Complete kit supplied in individual box. Not included PVC pipe Ø63 mm. which depends on each installation (for pump connection with the system)
