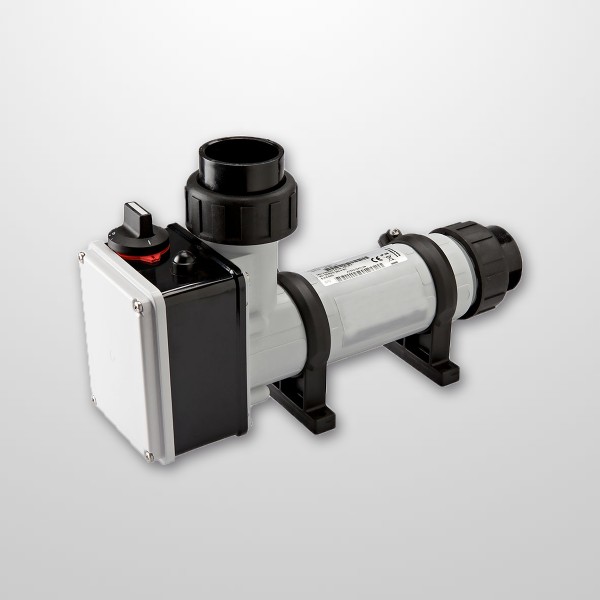

Electric Heater 3Kw. + Thermostat (1-phase / 3-phase)

SEAC000010
€890.86
Tax included

If you are professional, request your price rate here.

Quantity

• Electric heater made of fiberglass reinforced thermoplastic

• Housing of thermoplastic

• Horizontal installation, eliminates air pockets and damage to the electric heating element

• Heating elements of Incoloy 825 or titanium

• Equipped with overheating cutout and flow switch

• Slip connections for bonding of Ø 50 mm pipes

• Supplied with a thermostat for adjusting pool temperature as well as overheating cutout and flow switch.

• Specially designed for smaller pools and hot tubs.

• Small and compact making it easy to install in areas with limited space.

NOTE! The standard version of the heater (with Incoloy element) is not intended for use in aggressive water, salt water or in pools with a chlorine machine/salt generator.

- Power: 3.0Kw.

- Rated Power 220-240 V / 380-415 V 50-60 HZ: 2,7 - 3,5 Kw

- Power Consumption:

  • 230 V (1-phase): 13 A
  • 230 V (3-phase): 8 A
  • 400 V (3-phase): 5 A
  • Min. flow: 90 l/min.
  • Max. flow: 300 l/min.
  • Max. pressure: 2,5 bar (2,5 Pa)
  • Max. temperature: 45ºC
  • Enclosure class: IP45
